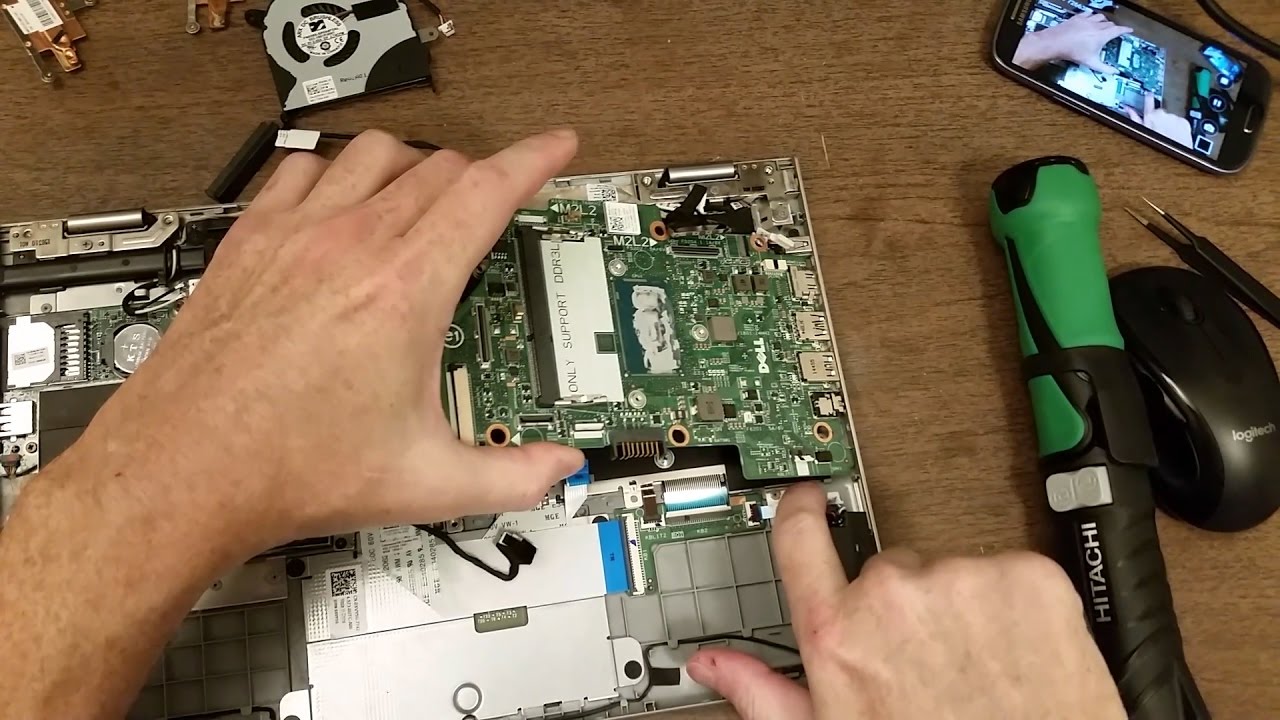

The motherboard is the backbone of a Dell laptop, housing critical components like the CPU, RAM, and power circuits. When malfunctions occur, they can disrupt the entire system. For users in Bihar, Dell Care in Patna offers specialized expertise to resolve these intricate issues. Below, we break down common Dell motherboard problems, their technical causes, and solutions.
1. No Power or Failure to Boot
Problem: The laptop does not turn on, even when connected to a charger.
Root Causes:
-
Power Delivery Failures: Defective voltage regulator modules (VRMs), blown capacitors, or shorted MOSFETs.
-
DC Jack Damage: Cracked solder joints or a loose power connector due to wear and tear.
-
Dead CMOS Battery: A drained CMOS battery prevents BIOS initialization.
-
Faulty BIOS Chip: Corrupted firmware or damaged EEPROM (e.g., Winbond 25Q128).
Solutions:
-
Test Power Input: Use a multimeter to verify 19.5V (standard for Dell laptops) at the DC jack.
-
Reflow DC Jack Solder: Repair cracked joints with a soldering iron.
-
Replace CMOS Battery: Install a new CR2032 battery.
-
BIOS Recovery: Reflash firmware using a CH341A programmer.
-
Professional Repair: For complex power circuit diagnostics, trust Dell Care in Patna to prevent further damage.
2. Overheating and Thermal Throttling
Problem: Laptop overheats, throttles performance, or shuts down unexpectedly.
Root Causes:
-
Clogged Heatsinks: Dust buildup blocking airflow.
-
Dried Thermal Paste: Degraded paste between the CPU/GPU and the heatsink.
-
Fan Failure: Broken bearings or disconnected fan cables.
-
VRM Overload: Overheating power delivery components due to inadequate cooling.
Solutions:
-
Clean Cooling System: Use compressed air to clear dust from heatsinks and fans.
-
Reapply Thermal Paste: Use high-performance paste (e.g., Noctua NT-H2).
-
Test/Replace Fans: Check fan voltage and RPM; replace if inconsistent.
-
Enhance VRM Cooling: Add thermal pads or copper shims.
3. BIOS Corruption or Boot Errors
Problem: Laptop stuck in boot loops, displaying “No Boot Device” or “BIOS Checksum Error.”
Root Causes:
-
Interrupted BIOS Update: Power loss during firmware flashing.
-
EEPROM Chip Damage: Physical wear or electrical surges.
-
Virus/Malware: Rare cases of BIOS code corruption.
Solutions:
-
Hard Reset BIOS: Remove the CMOS battery and hold the power button for 30 seconds.
-
Reflash BIOS: Extract firmware from Dell’s support site and rewrite using a programmer.
-
Replace BIOS Chip: Desolder and install a pre-programmed EEPROM.
-
Expert Assistance: Dell Care in Patna provides reliable BIOS recovery services, minimizing data loss risks.
4. Physical Damage (Drops, Liquid Spills)
Problem: Cracked PCB, broken traces, or corroded components.
Root Causes:
-
Impact Damage: Dislodged BGA connections under the CPU/GPU.
-
Liquid Spills: Corrosion on power rails or SMD components.
Solutions:
-
Inspect PCB for Cracks: Use a microscope to identify fractures.
-
Repair Traces: Apply conductive epoxy or solder jumper wires.
-
BGA Reballing: Reflow solder balls using a BGA rework station.
-
Corrosion Cleanup: Scrub affected areas with 99% isopropyl alcohol.
-
Advanced Repairs: For PCB restoration, rely on Dell Care in Patna’s micro-soldering expertise.
5. Peripheral Failures (USB, HDMI, Keyboard)
Problem: Ports malfunction or built-in peripherals stop working.
Root Causes:
-
Broken Solder Joints: From repeated plugging/unplugging.
-
EC/KBC Chip Failure: A Faulty embedded controller is disrupting I/O operations.
-
Corrosion: Liquid damage on port connectors.
